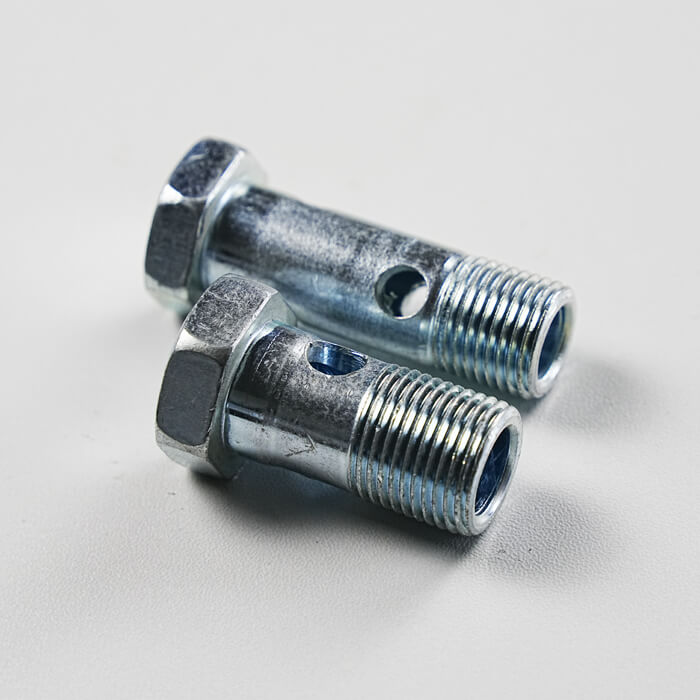

700M Metric Bolt DIN7643 Hydraulic Banjo Fitting Carbon Steel Hollow with Hole
Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | DIMENSIONS | |||
|---|---|---|---|---|---|
| A | B | C | S1 | ||
| 700M-10 | M10X1.0 | 19 | 4 | 6 | 17 |
| 700M-12 | M12X1.5 | 24 | 6 | 6 | 17 |
| 700M-14 | M14X1.5 | 26 | 8 | 7 | 19 |
| 700M-16 | M16X1.5 | 28 | 9 | 7.5 | 22 |
| 700M-18 | M18X1.5 | 32 | 11 | 8 | 24 |
| 700M-22 | M22X1.5 | 39 | 14 | 9 | 27 |
| 700M-26 | M26X1.5 | 45 | 18 | 10 | 32 |
| 700M-30 | M30X1.5 | 51 | 22 | 11 | 38 |
