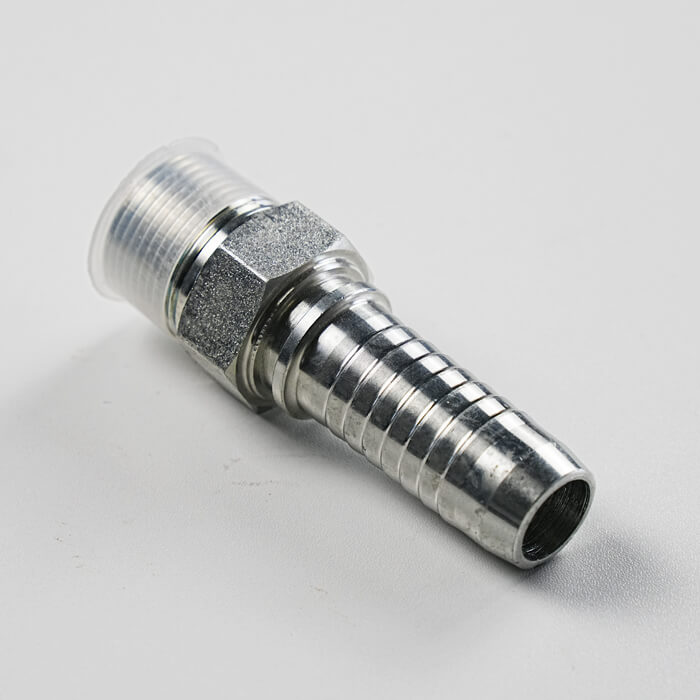

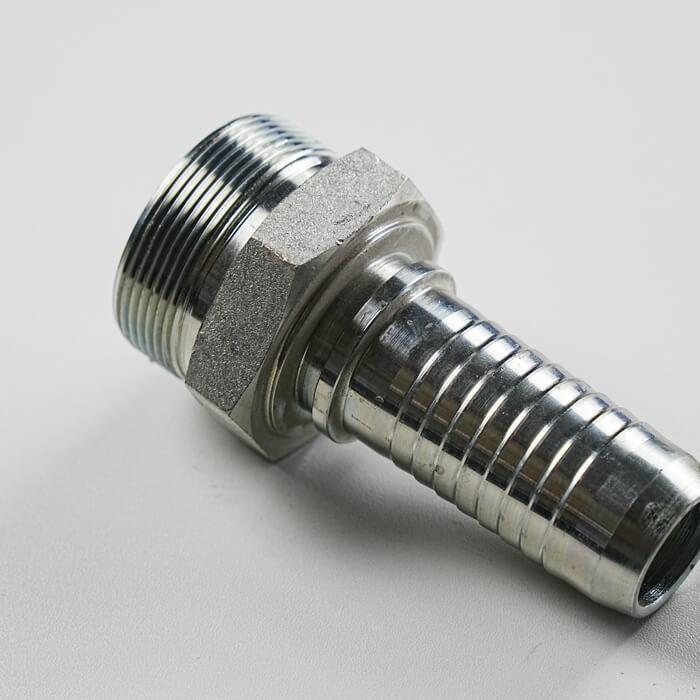

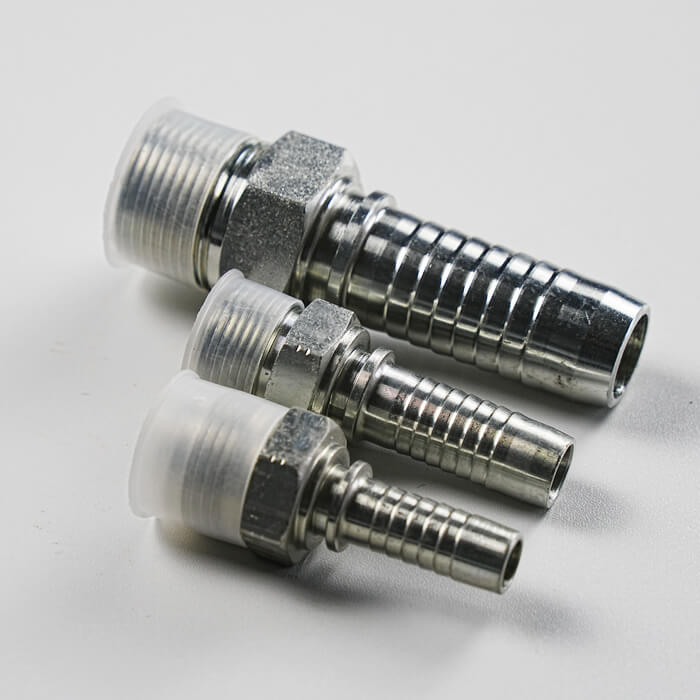

10411 Metric Male 24° Cone Seat L.T. (DIN 3853)
Part No.: 10411
Material: Carbon Steel/Stainless Steel/Brass
Surface Treatment: Zinc Plating/Zini Plating
Salt Spray Test: 96h/120h/300h
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | HOSE BORE | TUBE O.D. | DIMENSIONS | |||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | S1 | |||
| 10411-12-04 | M12X1.5 | 6 | 04 | 6 | 20.5 | 10 | 12 |
| 10411-14-04 | M14X1.5 | 6 | 04 | 8 | 20.5 | 10 | 14 |
| 10411-14-05 | M14X1.5 | 8 | 05 | 8 | 21.5 | 10 | 14 |
| 10411-16-04 | M16X1.5 | 6 | 04 | 10 | 22.5 | 11 | 17 |
| 10411-16-05 | M16X1.5 | 8 | 05 | 10 | 22.5 | 11 | 17 |
| 10411-16-06 | M16X1.5 | 10 | 06 | 10 | 22.5 | 11 | 17 |
| 10411-18-05 | M18X1.5 | 8 | 05 | 12 | 23.5 | 11 | 19 |
| 10411-18-06 | M18X1.5 | 10 | 06 | 12 | 21.5 | 11 | 19 |
