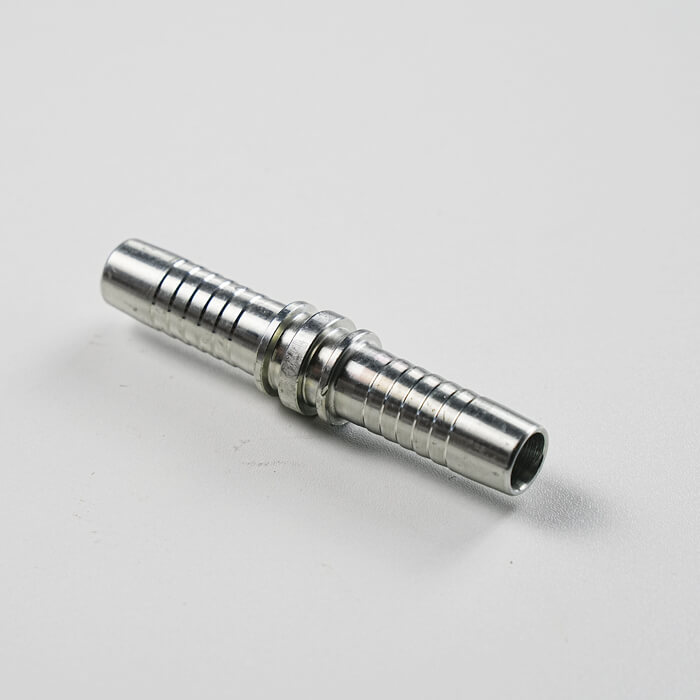

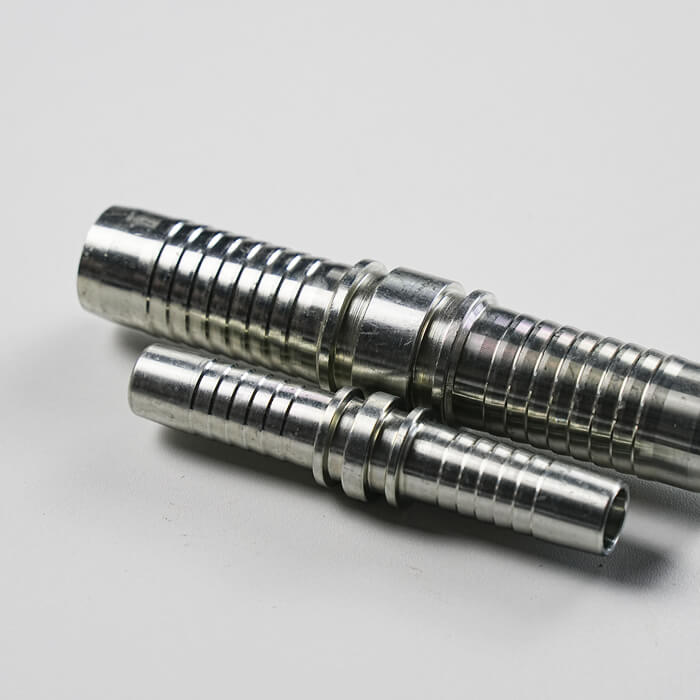

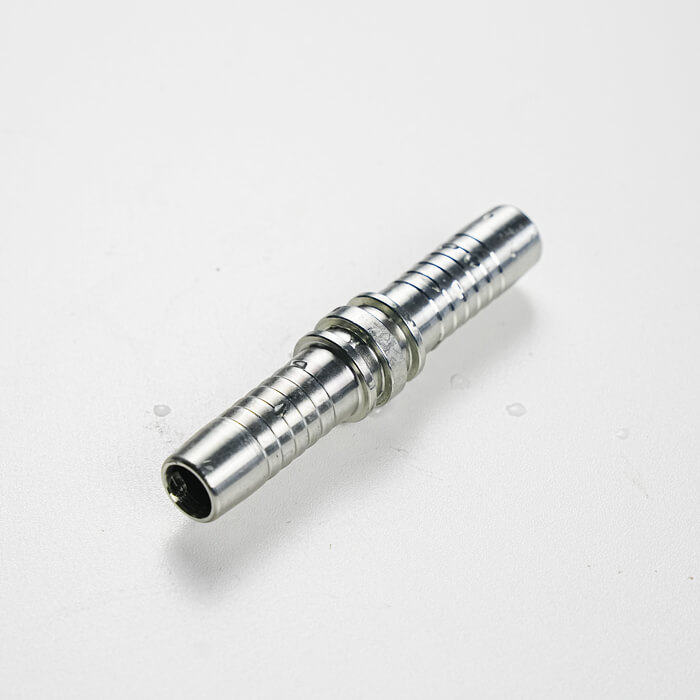

90011 Metric Straight Hose Fitting Double Connector
Part No.: 90011
Material: Carbon Steel
Surface Treatment: Zinc, Trivalent Chromate Plating
Salt Spray Test: 96h Corrosion Resistent
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| PART NO. | HOSE BORE | DIMENSIONS | |
|---|---|---|---|
| DN | DASH | L | |
| 90011-04 | 6 | 04 | 69 |
| 90011-05 | 8 | 05 | 69 |
| 90011-06 | 10 | 06 | 73 |
| 90011-08 | 12 | 08 | 77 |
| 90011-10 | 16 | 10 | 83 |
| 90011-12 | 20 | 12 | 93 |
| 90011-16 | 25 | 16 | 114 |
| 90011-20 | 32 | 20 | 132 |
| 90011-24 | 40 | 24 | 162 |
| 90011-32 | 50 | 32 | 170 |
