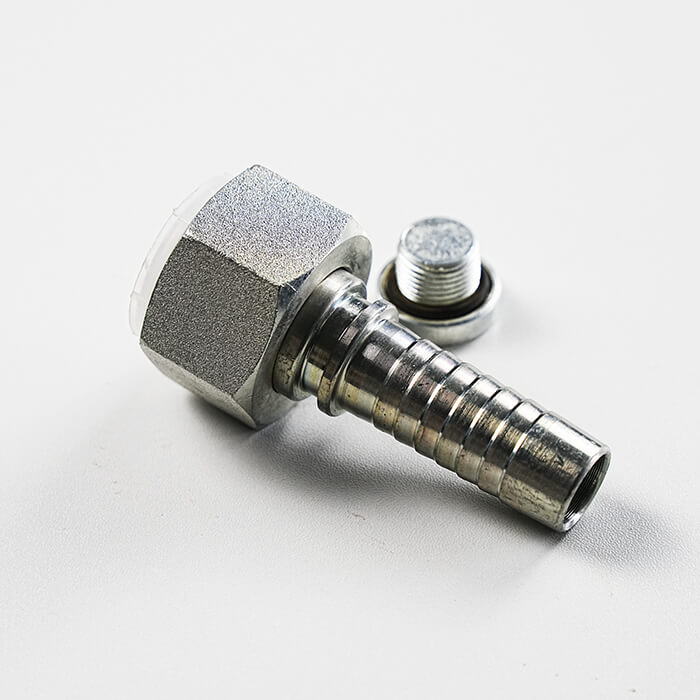

Model Number : 20411
Shape : Equal
Type : FEMALE
Material : Carbon Steel
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | HOSE BORE | TUBE O.D. | O Ring | DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | S2 | ||||
| 20411-12-04 | M12X1.5 | 6 | 04 | 6 | O04.5x1.5 | 26 | 1 | 17 |
| 20411-14-04 | M14X1.5 | 6 | 04 | 8 | O06.5x1.5 | 27.5 | 2 | 19 |
| 20411-14-06 | M14X1.5 | 10 | 06 | 8 | O06.5x1.5 | 27.5 | 2 | 19 |
| 20411-16-04 | M16X1.5 | 6 | 04 | 10 | O08.0x1.5 | 28 | 2 | 22 |
| 20411-16-05 | M16X1.5 | 8 | 05 | 10 | O08.0x1.5 | 28 | 2 | 22 |
| 20411-16-06 | M16X1.5 | 10 | 06 | 10 | O08.0x1.5 | 28 | 2 | 22 |
