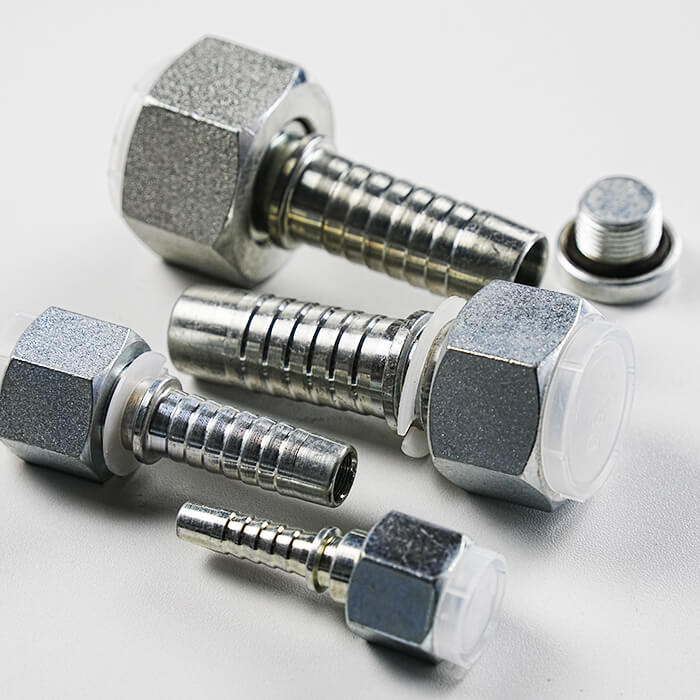

24 degree cone O-ring H.T.,Straight hose tail connector
Part no.: 20511 Metric Female 24 degree Cone
Raw material: Carbon steel and Stainless steel
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | HOSE BORE | TUBE O.D. | O Ring | DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | S2 | ||||
| 20511-14-04 | M16X1.5 | 6 | 04 | 6 | O04.5x1.5 | 29 | 1.5 | 19 |
| 20511-16-04 | M16X1.5 | 6 | 04 | 8 | O06.5x1.5 | 29 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 05 | 8 | O06.5x1.5 | 29 | 1.5 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 06 | 10 | O08.0x1.5 | 29 | 2 | 24 |
