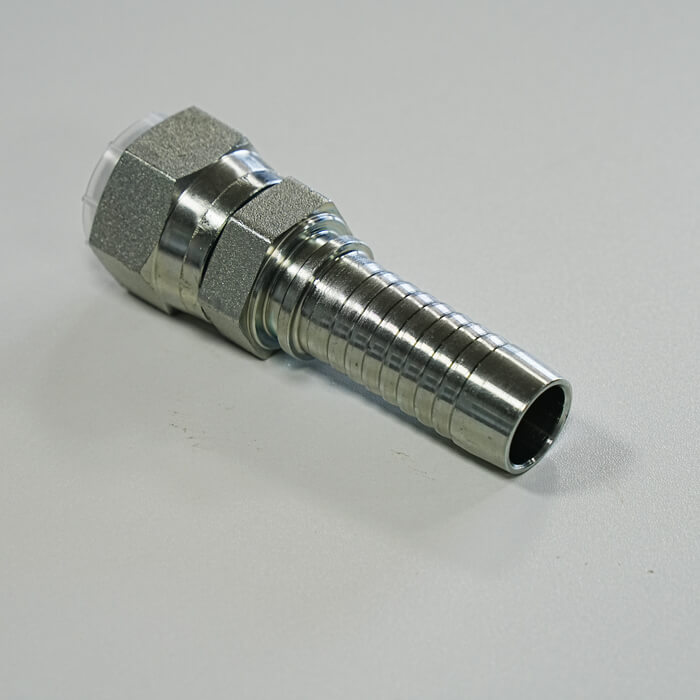

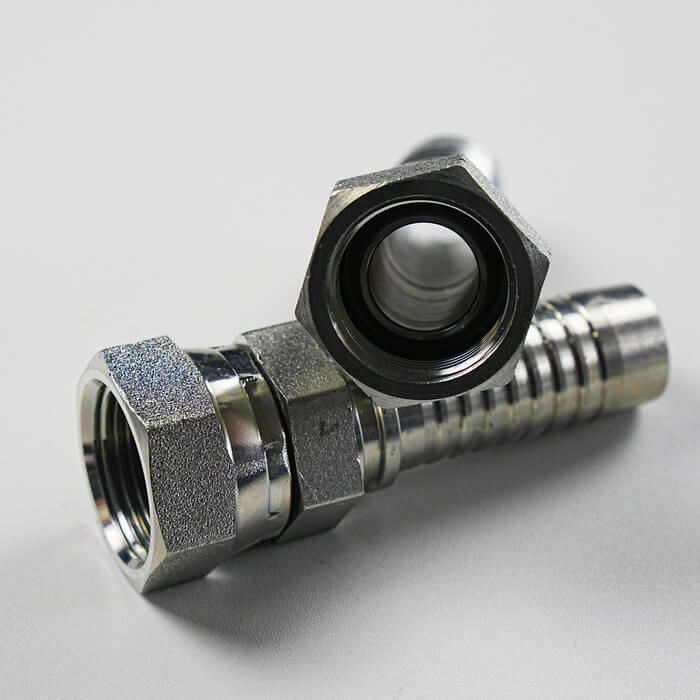

Female 60-degree cone seat thread
Material : Solid Carbon steel or Stainless steel
Surface treatment: White or yellow zinc plated
Salt spray test: 96 hours or Normal selection
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | S1 | S2 | ||
| 28611-12-04 | M12X1.5 | 6 | 04 | 20 | 9 | 17 | 17 |
| 28611-14-06 | M14X1.5 | 6 | 04 | 21 | 10.5 | 19 | 19 |
| 28611-16-04 | M16X1.5 | 6 | 04 | 24 | 10 | 22 | 22 |
| 28611-16-05 | M16X1.5 | 8 | 05 | 24 | 10 | 22 | 22 |
| 28611-16-06 | M16X1.5 | 10 | 06 | 24 | 10 | 22 | 22 |
| 28611-18-06 | M18X1.5 | 10 | 06 | 24 | 11.5 | 24 | 24 |
