Materials: Stainless Steel Or Carbon Steel
Type: Swaged Hose Fitting

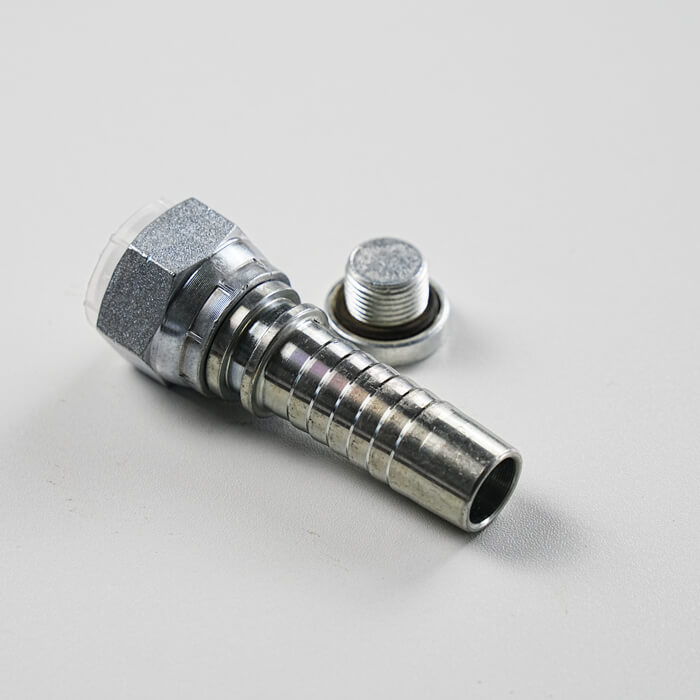

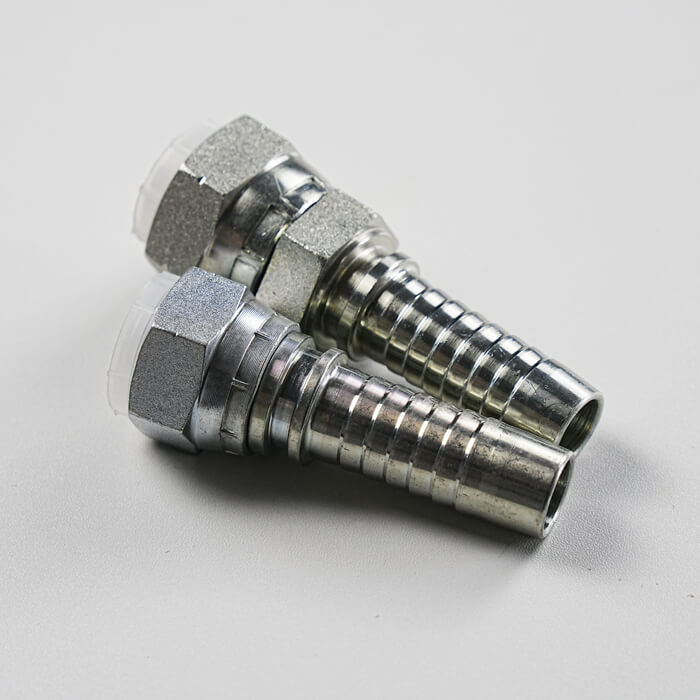

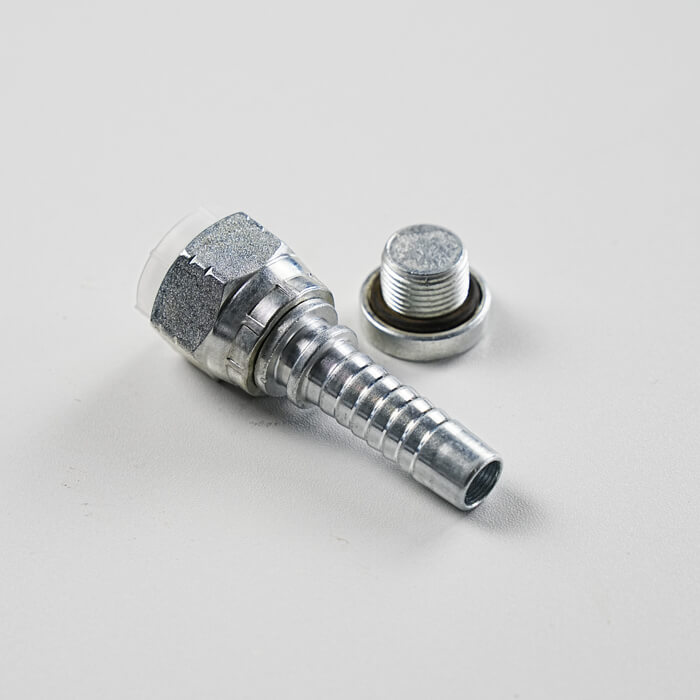

Part no.:22611 BSP Female 60 degree Cone
Surface Treatment: Zinc Plated
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | HOSE BORE | DIMENSIONS | |||
|---|---|---|---|---|---|---|
| DN | DASH | A | C | S2 | ||
| 22611-02-03 | G 1/8"X28 | 5 | 03 | 15 | 5.5 | 14 |
| 22611-02-04 | G 1/8"X28 | 6 | 04 | 15 | 5.5 | 14 |
| 22611-04-03 | G 1/4"X19 | 5 | 03 | 17 | 5.5 | 19 |
| 22611-04-04 | G 1/4"X19 | 6 | 04 | 18 | 5.5 | 19 |
| 22611-04-05 | G 1/4"X19 | 8 | 05 | 18 | 5.5 | 19 |
| 22611-04-06 | G 1/4"X19 | 10 | 06 | 18 | 5.5 | 19 |
| 22611-06-04 | G 3/8"X19 | 6 | 04 | 19 | 6.3 | 22 |
| 22611-06-05 | G 3/8"X19 | 8 | 05 | 19 | 6.3 | 22 |
| 22611-06-06 | G 3/8"X19 | 10 | 06 | 19.5 | 6.3 | 22 |
| 22611-06-08 | G 3/8"X19 | 12 | 08 | 19.5 | 6.3 | 22 |
