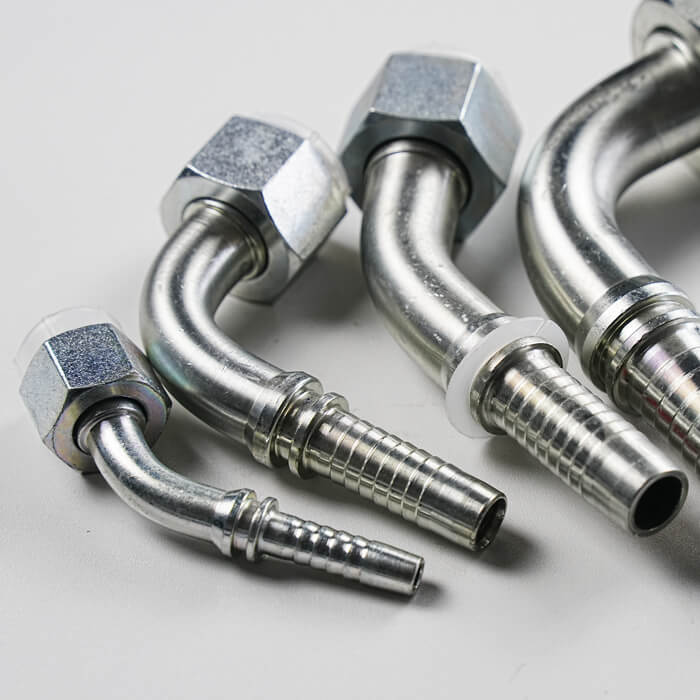

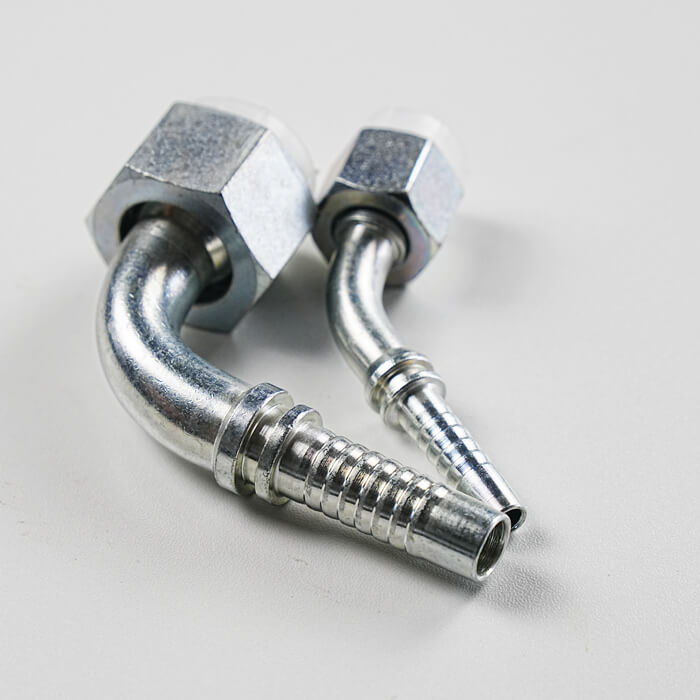

24291 90° ORFS FEMALE FLAT SEAT (ISO 12151-1 – SAE J516)
Part No.: 24291
Material: Carbon Steel
Surface Treatment: Zinc Plated
Salt Spray Test: 96h
Sundon Machinery is a professional manufacturer since 2014, focus on hydraulic system components, including cutting ring fittings, transition fittings, and related products. Our products already be exported to Europe, the Middle East, South America, and other regions worldwide.
Share:
| Part No. | Thread E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | H | C | S2 | ||
| 24291-04-04 | 9/16"X18 | 6 | 04 | 30 | 41 | 8.5 | 19 |
| 24291-04-05 | 9/16"X18 | 8 | 05 | 33 | 44 | 8.5 | 19 |
| 24291-04-06 | 11/16"X16 | 10 | 06 | 35.3 | 49.8 | 10 | 22 |
| 24291-06-08 | 11/16"X16 | 12 | 08 | 41 | 55 | 10 | 22 |
| 24291-08-08 | 13/16"X16 | 12 | 08 | 41 | 57 | 11 | 27 |
| 24291-08-10 | 13/16"X16 | 16 | 10 | 56.5 | 61.5 | 11 | 27 |
